• 1x TEVO Heater™
• 1x Remote including battery
• Pair of Adjustable stainless steel wall mounts

• For wall mounting, the lowest part of the heater must be located at or above a minimum height of 1.8m from ground level, so that the heater cannot be touched when in operation.
• Always mount horizontally and do not position the heater at an angle of more than 90° and less than 45°
• The heater should always have a minimum clearance of 0.3m from adjacent walls and ceilings.
• The heater must be installed on the mounting brackets provided.
• Fasten the heater securely on the brackets using the nuts and bolts supplied.
• The brackets can be used to adjust the direction of the heater. Adjust the heater angle by loosening the two bolts on the wall mounting bracket. Tighten the bolts again when the desired angle is reached.

TEVO™ Swing Heater

• Voltage (V) : 220-240V AC, 50-60 Hz
• Power (W) : 2000W
• Water Ingress Protection :Model TIOH = IPX4, =TIOH_V2 = IP55*
• *Refer to Page 12 of your Manual to confirm Model number and Rating.
• Water Ingress Protection : IP55/IPX4*
• Dimensions W x H x D (mm) : 900 x 130 x 90
• Weight (kg) : 3.1kg
• Class : I
• Power cable length : 2.77 metre

TEVO™ Standard Heater

• Voltage (V) : 220-240V AC, 50-60 Hz
• Power (W) : 2000W
• Water Ingress Protection : IP55/IPX4
• Dimensions W x H x D (mm) : 900 x 130 x 90
• Weight (kg) : 2.6kg
• Class : I
• Power cable length : 1.8 metre

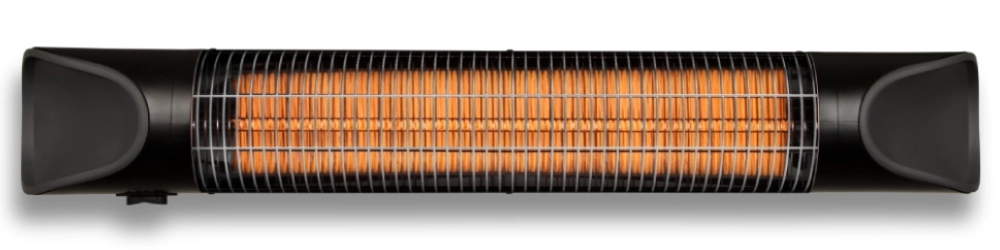

TEVO™ Basic Heater

• Voltage (V) : 220-240V AC, 50-60 Hz
• Power (W) : 2000W
• Water Ingress Protection : IP55
• Dimensions W x H x D (mm) : 900 x 130 x 90
• Weight (kg) : 2.2kg
• Class : I
• Power cable length : 1.8 metre
• Power Levels 2 – High @ 2,000 watts and Low @ 1,000 watts
• No Remote, controlled by 3-way switch – OFF-Low-High

TEVO™ Plus Heater

• Voltage (V) : 220-240V AC, 50-60 Hz
• Power (W) : 2000W
• Water Ingress Protection : IPX4
• Dimensions W x H x D (mm) : 1190 x 130 x 90
• Weight (kg) : 3.5kg
• Class : I
• Power cable length : 2.77 metre

Tripod Stand

• Black Powder-coated steel.
• 88cm from foot to foot i.e. the footprint is a 3-sided triangle with each side measuring 88cm.
• Supplied with fittings to accommodate the mounting brackets supplied with your Heater.
• Designed with feet that must be fixed to the floor, screws included.

Yes! Your TEVO Heater™ comes with a 1 year warranty

No it doesn’t! The TEVO Heater runs solely on electricity and requires a single plug socket that can handle the required 2000w of energy the TEVO requires to run.
